6 dB Fixed Attenuator, N Male to N Female Black Anodized
Aluminum Heatsink Body Rated to 50 Watts Up to 3 GHz

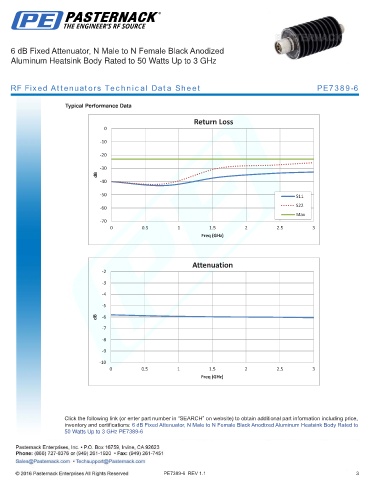

RF Fixed Attenuators Technical Data Sheet PE7389-6
Typical Performance Data
Return Loss
0
-10
-20
-30
dB
-40
-50 S11
-60 S22
Max
-70
0 0.5 1 1.5 2 2.5 3
Freq (GHz)
Attenuation
-2
-3
-4
-5
dB -6
-7
-8
-9
-10
0 0.5 1 1.5 2 2.5 3
Freq (GHz)
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 6 dB Fixed Attenuator, N Male to N Female Black Anodized Aluminum Heatsink Body Rated to
50 Watts Up to 3 GHz PE7389-6
PE7389-6 REV 1.1 3
