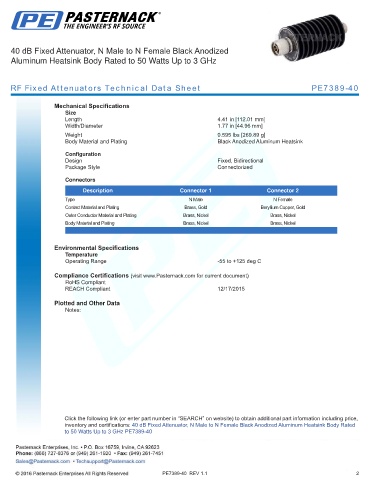

40 dB Fixed Attenuator, N Male to N Female Black Anodized
Aluminum Heatsink Body Rated to 50 Watts Up to 3 GHz

RF Fixed Attenuators Technical Data Sheet PE7389-40

Mechanical Specifications
Size
Length 4.41 in [112.01 mm]
Width/Diameter 1.77 in [44.96 mm]
.
Weight 0.595 lbs [269.89 g]
Body Material and Plating Black Anodized Aluminum Heatsink

Configuration
Design Fixed, Bidirectional
Package Style Connectorized
Connectors
Description Connector 1 Connector 2
Type N Male N Female
Contact Material and Plating Brass, Gold Beryllium Copper, Gold
Outer Conductor Material and Plating Brass, Nickel Brass, Nickel
Body Material and Plating Brass, Nickel Brass, Nickel
.

Environmental Specifications
Temperature
Operating Range -55 to +125 deg C

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant
REACH Compliant 12/17/2015

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 40 dB Fixed Attenuator, N Male to N Female Black Anodized Aluminum Heatsink Body Rated
to 50 Watts Up to 3 GHz PE7389-40

PE7389-40 REV 1.1 2
