6 dB Fixed Attenuator, N Male To N Female Aluminum Heatsink
Black Anodized Body Rated To 50 Watts Up To 4 GHz

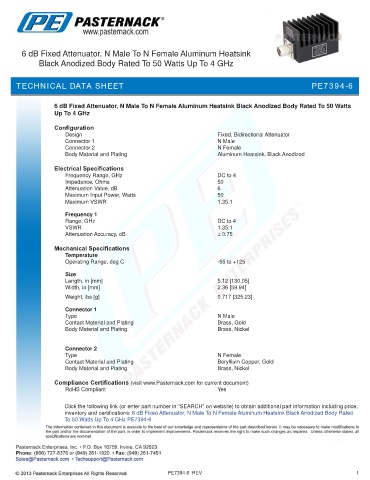

TECHNICAL DATA SHEET PE7394-6

6 dB Fixed Attenuator, N Male To N Female Aluminum Heatsink Black Anodized Body Rated To 50 Watts
Up To 4 GHz

Configuration
Design Fixed, Bidirectional Attenuator
Connector 1 N Male
Connector 2 N Female
Body Material and Plating Aluminum Heatsink, Black Anodized

Electrical Specifications
Frequency Range, GHz DC to 4
Impedance, Ohms 50
Attenuation Value, dB 6
Maximum Input Power, Watts 50
Maximum VSWR 1.35:1

Frequency 1
Range, GHz DC to 4
VSWR 1.35:1
Attenuation Accuracy, dB ± 0.75
Mechanical Specifications
Temperature
Operating Range, deg C -55 to +125

Size
Length, in [mm] 5.12 [130.05]
Width, in [mm] 2.36 [59.94]
.
Weight, lbs [g] 0.717 [325.23]
Connector 1
Type N Male
Contact Material and Plating Brass, Gold
Body Material and Plating Brass, Nickel

Connector 2
Type N Female
Contact Material and Plating Beryllium Copper, Gold
Body Material and Plating Brass, Nickel

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 6 dB Fixed Attenuator, N Male To N Female Aluminum Heatsink Black Anodized Body Rated
To 50 Watts Up To 4 GHz PE7394-6

PE7394-6 REV 1
