6 dB Fixed Attenuator, N Male To N Female
Directional Rated To 50 Watts Up To 18 GHz

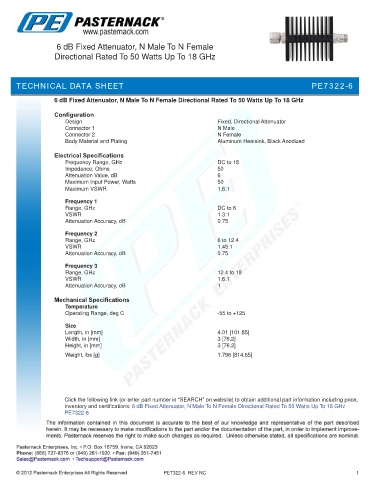

TECHNICAL DATA SHEET PE7322-6

6 dB Fixed Attenuator, N Male To N Female Directional Rated To 50 Watts Up To 18 GHz

Configuration
Design Fixed, Directional Attenuator
Connector 1 N Male
Connector 2 N Female
Body Material and Plating Aluminum Heatsink, Black Anodized

Electrical Specifications
Frequency Range, GHz DC to 18
Impedance, Ohms 50
Attenuation Value, dB 6
Maximum Input Power, Watts 50
Maximum VSWR 1.6:1

Frequency 1
Range, GHz DC to 6
VSWR 1.3:1
Attenuation Accuracy, dB 0.75
Frequency 2
Range, GHz 6 to 12.4
VSWR 1.45:1
Attenuation Accuracy, dB 0.75
Frequency 3
Range, GHz 12.4 to 18
VSWR 1.6:1
Attenuation Accuracy, dB 1

Mechanical Specifications
Temperature
Operating Range, deg C -55 to +125
Size
Length, in [mm] 4.01 [101.85]
Width, in [mm] 3 [76.2]
Height, in [mm] 3 [76.2]
.
Weight, lbs [g] 1.796 [814.65]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 6 dB Fixed Attenuator, N Male To N Female Directional Rated To 50 Watts Up To 18 GHz
PE7322-6

PE7322-6 REV NC 1
