9 dB Fixed Attenuator, QMA Male to QMA Female
Brass Tri-Metal Body Rated to 1 Watt Up to 6 GHz

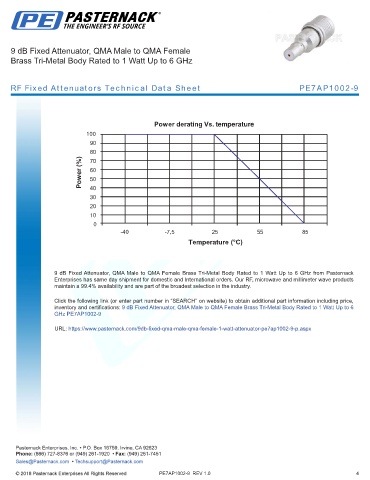

RF Fixed Attenuators Technical Data Sheet PE7AP1002-9
Power derating Vs. temperature
100
90
80
Power (%) 60
70
50
40
30
20
10
0
-40 -7,5 25 55 85
Temperature (°C)
9 dB Fixed Attenuator, QMA Male to QMA Female Brass Tri-Metal Body Rated to 1 Watt Up to 6 GHz from Pasternack
Enterprises has same day shipment for domestic and International orders. Our RF, microwave and millimeter wave products
maintain a 99.4% availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 9 dB Fixed Attenuator, QMA Male to QMA Female Brass Tri-Metal Body Rated to 1 Watt Up to 6
GHz PE7AP1002-9
URL: https://www.pasternack.com/9db-fixed-qma-male-qma-female-1-watt-attenuator-pe7ap1002-9-p.aspx
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
PE7AP1002-9 REV 1.0 4
