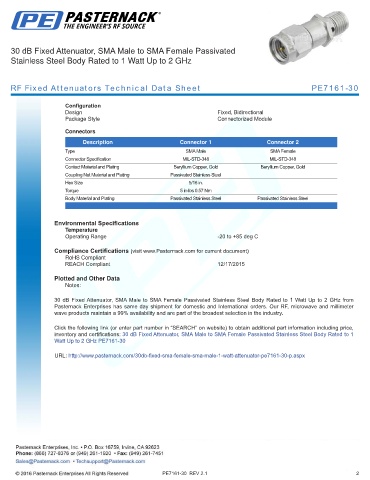

Page 294 - RF Attenuator Datasheets

30 dB Fixed Attenuator, SMA Male to SMA Female Passivated
Stainless Steel Body Rated to 1 Watt Up to 2 GHz

RF Fixed Attenuators Technical Data Sheet PE7161-30

Configuration
Design Fixed, Bidirectional
Package Style Connectorized Module
Connectors

Description Connector 1 Connector 2
Type SMA Male SMA Female
Connector Specification MIL-STD-348 MIL-STD-348
Contact Material and Plating Beryllium Copper, Gold Beryllium Copper, Gold
Coupling Nut Material and Plating Passivated Stainless Steel
Hex Size 5/16 in.
Torque 5 in-lbs 0.57 Nm
Body Material and Plating Passivated Stainless Steel Passivated Stainless Steel
.

Environmental Specifications
Temperature
Operating Range -20 to +85 deg C

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant
REACH Compliant 12/17/2015

Plotted and Other Data
Notes:

30 dB Fixed Attenuator, SMA Male to SMA Female Passivated Stainless Steel Body Rated to 1 Watt Up to 2 GHz from
Pasternack Enterprises has same day shipment for domestic and International orders. Our RF, microwave and millimeter
wave products maintain a 99% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 30 dB Fixed Attenuator, SMA Male to SMA Female Passivated Stainless Steel Body Rated to 1
Watt Up to 2 GHz PE7161-30

URL: http://www.pasternack.com/30db-fixed-sma-female-sma-male-1-watt-attenuator-pe7161-30-p.aspx

PE7161-30 REV 2.1 2
