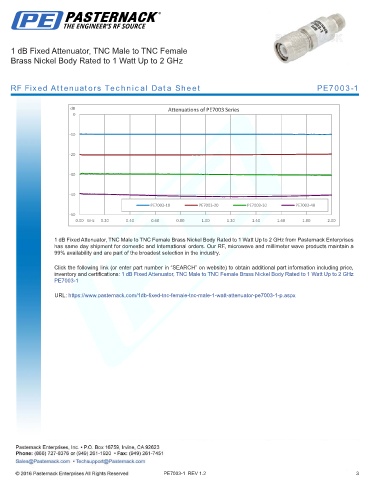

1 dB Fixed Attenuator, TNC Male to TNC Female
Brass Nickel Body Rated to 1 Watt Up to 2 GHz

RF Fixed Attenuators Technical Data Sheet PE7003-1

dB Attenuations of PE7003 Series
0

-10

-20

-30

-40
PE7003-10 PE7003-20 PE7003-30 PE7003-40
-50
0.00 GHz 0.20 0.40 0.60 0.80 1.00 1.20 1.40 1.60 1.80 2.00

1 dB Fixed Attenuator, TNC Male to TNC Female Brass Nickel Body Rated to 1 Watt Up to 2 GHz from Pasternack Enterprises
has same day shipment for domestic and International orders. Our RF, microwave and millimeter wave products maintain a
99% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 1 dB Fixed Attenuator, TNC Male to TNC Female Brass Nickel Body Rated to 1 Watt Up to 2 GHz
PE7003-1

URL: https://www.pasternack.com/1db-fixed-tnc-female-tnc-male-1-watt-attenuator-pe7003-1-p.aspx

PE7003-1 REV 1.2 3
