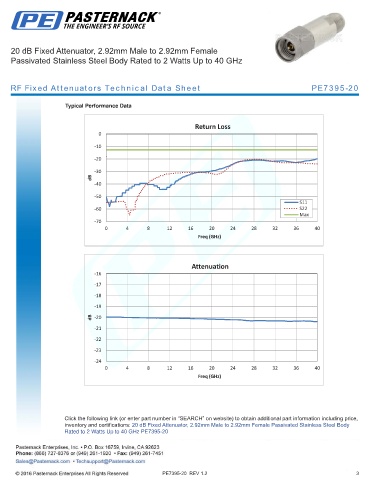

Page 401 - RF Attenuator Datasheets

20 dB Fixed Attenuator, 2.92mm Male to 2.92mm Female
Passivated Stainless Steel Body Rated to 2 Watts Up to 40 GHz

RF Fixed Attenuators Technical Data Sheet PE7395-20

Typical Performance Data

Return Loss
0

-10
-20

-30
dB
-40

-50
S11
-60 S22
Max
-70
0 4 8 12 16 20 24 28 32 36 40
Freq (GHz)

Attenuation
-16
-17
-18
-19

dB -20
-21
-22

-23
-24
0 4 8 12 16 20 24 28 32 36 40
Freq (GHz)

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 20 dB Fixed Attenuator, 2.92mm Male to 2.92mm Female Passivated Stainless Steel Body
Rated to 2 Watts Up to 40 GHz PE7395-20

PE7395-20 REV 1.2 3
