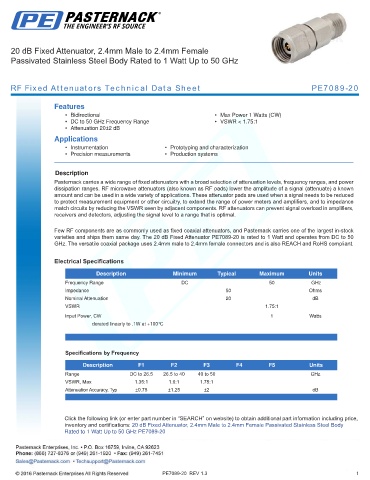

20 dB Fixed Attenuator, 2.4mm Male to 2.4mm Female
Passivated Stainless Steel Body Rated to 1 Watt Up to 50 GHz

RF Fixed Attenuators Technical Data Sheet PE7089-20

Features
• Bidirectional • Max Power 1 Watts (CW)
• DC to 50 GHz Frequency Range • VSWR < 1.75:1
• Attenuation 20±2 dB
Applications
• Instrumentation • Prototyping and characterization
• Precision measurements • Production systems
.
Description
Pasternack carries a wide range of fixed attenuators with a broad selection of attenuation levels, frequency ranges, and power
dissipation ranges. RF microwave attenuators (also known as RF pads) lower the amplitude of a signal (attenuate) a known
amount and can be used in a wide variety of applications. These attenuator pads are used when a signal needs to be reduced
to protect measurement equipment or other circuitry, to extend the range of power meters and amplifiers, and to impedance
match circuits by reducing the VSWR seen by adjacent components. RF attenuators can prevent signal overload in amplifiers,
receivers and detectors, adjusting the signal level to a range that is optimal.

Few RF components are as commonly used as fixed coaxial attenuators, and Pasternack carries one of the largest in-stock
varieties and ships them same day. The 20 dB Fixed Attenuator PE7089-20 is rated to 1 Watt and operates from DC to 50
GHz. The versatile coaxial package uses 2.4mm male to 2.4mm female connectors and is also REACH and RoHS compliant.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 50 GHz
Impedance 50 Ohms
Nominal Attenuation 20 dB
VSWR 1.75:1
Input Power, CW 1 Watts
derated linearly to .1W at +100°C

.

Specifications by Frequency
Description F1 F2 F3 F4 F5 Units
Range DC to 26.5 26.5 to 40 40 to 50 GHz
VSWR, Max 1.35:1 1.6:1 1.75:1
Attenuation Accuracy, Typ ±0.75 ±1.25 ±2 dB
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 20 dB Fixed Attenuator, 2.4mm Male to 2.4mm Female Passivated Stainless Steel Body
Rated to 1 Watt Up to 50 GHz PE7089-20
