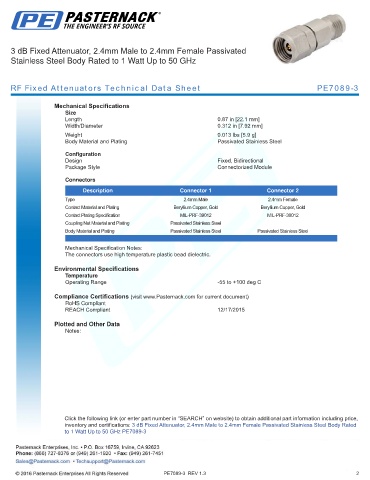

3 dB Fixed Attenuator, 2.4mm Male to 2.4mm Female Passivated
Stainless Steel Body Rated to 1 Watt Up to 50 GHz

RF Fixed Attenuators Technical Data Sheet PE7089-3

Mechanical Specifications
Size
Length 0.87 in [22.1 mm]
Width/Diameter 0.312 in [7.92 mm]
.
Weight 0.013 lbs [5.9 g]
Body Material and Plating Passivated Stainless Steel

Configuration
Design Fixed, Bidirectional
Package Style Connectorized Module
Connectors
Description Connector 1 Connector 2
Type 2.4mm Male 2.4mm Female
Contact Material and Plating Beryllium Copper, Gold Beryllium Copper, Gold
Contact Plating Specification MIL-PRF-39012 MIL-PRF-39012
Coupling Nut Material and Plating Passivated Stainless Steel
Body Material and Plating Passivated Stainless Steel Passivated Stainless Steel
.
Mechanical Specification Notes:
The connectors use high temperature plastic bead dielectric.

Environmental Specifications
Temperature
Operating Range -55 to +100 deg C
Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant
REACH Compliant 12/17/2015

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 3 dB Fixed Attenuator, 2.4mm Male to 2.4mm Female Passivated Stainless Steel Body Rated
to 1 Watt Up to 50 GHz PE7089-3

PE7089-3 REV 1.3 2
