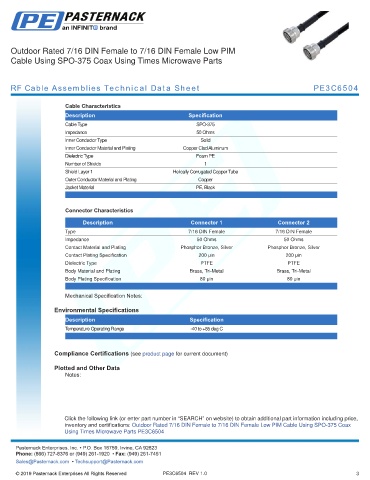

Outdoor Rated 7/16 DIN Female to 7/16 DIN Female Low PIM
Cable Using SPO-375 Coax Using Times Microwave Parts

RF Cable Assemblies Technical Data Sheet PE3C6504

Cable Characteristics
Description Specification
Cable Type SPO-375
Impedance 50 Ohms
Inner Conductor Type Solid
Inner Conductor Material and Plating Copper Clad Aluminum
Dielectric Type Foam PE
Number of Shields 1
Shield Layer 1 Helically Corrugated Copper Tube
Outer Conductor Material and Plating Copper
Jacket Material PE, Black
.

Connector Characteristics
Description Connector 1 Connector 2
Type 7/16 DIN Female 7/16 DIN Female
Impedance 50 Ohms 50 Ohms
Contact Material and Plating Phosphor Bronze, Silver Phosphor Bronze, Silver
Contact Plating Specification 200 µin 200 µin
Dielectric Type PTFE PTFE
Body Material and Plating Brass, Tri-Metal Brass, Tri-Metal
Body Plating Specification 80 µin 80 µin
.
Mechanical Specification Notes:

Environmental Specifications
Description Specification
Temperature Operating Range -40 to +85 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Outdoor Rated 7/16 DIN Female to 7/16 DIN Female Low PIM Cable Using SPO-375 Coax
Using Times Microwave Parts PE3C6504 Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
