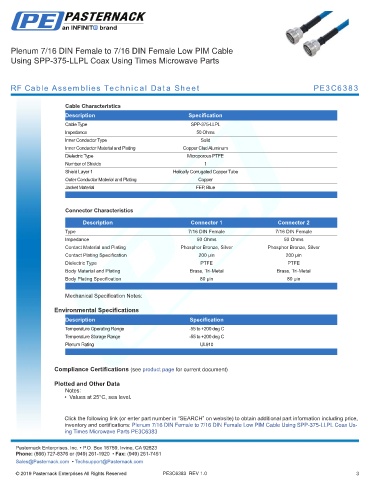

Plenum 7/16 DIN Female to 7/16 DIN Female Low PIM Cable
Using SPP-375-LLPL Coax Using Times Microwave Parts

RF Cable Assemblies Technical Data Sheet PE3C6383

Cable Characteristics
Description Specification
Cable Type SPP-375-LLPL
Impedance 50 Ohms
Inner Conductor Type Solid
Inner Conductor Material and Plating Copper Clad Aluminum
Dielectric Type Microporous PTFE
Number of Shields 1
Shield Layer 1 Helically Corrugated Copper Tube
Outer Conductor Material and Plating Copper
Jacket Material FEP, Blue
.

Connector Characteristics
Description Connector 1 Connector 2
Type 7/16 DIN Female 7/16 DIN Female
Impedance 50 Ohms 50 Ohms
Contact Material and Plating Phosphor Bronze, Silver Phosphor Bronze, Silver
Contact Plating Specification 200 µin 200 µin
Dielectric Type PTFE PTFE
Body Material and Plating Brass, Tri-Metal Brass, Tri-Metal
Body Plating Specification 80 µin 80 µin
.
Mechanical Specification Notes:

Environmental Specifications
Description Specification
Temperature Operating Range -55 to +200 deg C
Temperature Storage Range -55 to +200 deg C
Plenum Rating UL910
.

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:
• Values at 25°C, sea level.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Plenum 7/16 DIN Female to 7/16 DIN Female Low PIM Cable Using SPP-375-LLPL Coax Us-
ing Times Microwave Parts PE3C6383 Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
