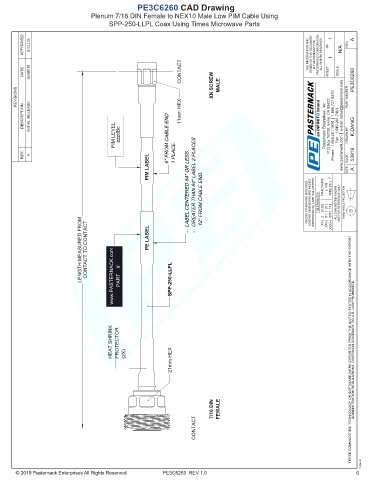

PE3C6260 CAD Drawing
Plenum 7/16 DIN Female to NEX10 Male Low PIM Cable Using
SPP-250-LLPL Coax Using Times Microwave Parts

APPROVED S.ELLIS THE INFORMATION AND DESIGN IN THIS DOCUMENT IS THE PROPERTY OF PASTERNACK CORPORATION. ALL RIGHTS RESERVED. 1 1 N/A REV A

DATE 04/09/19 CONTACT SHEET OF SCALE PE3C6260

REVISIONS XN SCREW MALE PART NUMBER

DESCRIPTION INITIAL RELEASE 11mm HEX Pasternack Enterprises, Inc. P.O.Box 16759, Irvine, CA 92623. Phone: 1.949.261.1920 │ 1.866.727.8376 Fax: 1.949.261.7451 www.pasternack.com │ e-mail: sales@pasternack.com

PIM LEVEL -zzzdBc 6" FROM CABLE END DRAWN BY K.DANG

REV. A 1 PLACE. CAGE 53919
PIM LABEL - LABEL CENTERED 84" OR LESS. - GREATER THAN 84" LABEL 2 PLACES 12" FROM CABLE END. UNLESS OTHERWISE SPECIFIED LEADING DIMENSIONS ARE INCHES DIMENSIONS IN [ ] ARE MILLIMETERS TOLERANCES: FRACTIONS ± 1/32 ANGLES ± 1° ALL DIMENSIONS SHOWN ARE FOR REFERENCE ONLY. THIRD-ANGLE PROJECTION SIZE A

LENGTH MEASURED FROM CONTACT TO CONTACT www.PASTERNACK.com PART # PE LABEL SPP-250-LLPL .2 [5.08] .X=± .01 [ .25 ] .XX=± .005 [ .13 ] .XXX=±

HEAT SHRINK PROTECTOR THESE COMMODITIES, TECHNOLOGY OR SOFTWARE WERE EXPORTED FROM THE UNITED STATES IN ACCORDANCE WITH THE EXPORT ADMINISTRATION REGULATIONS. DIVERSION CONTRARY TO U.S. LAW PROHIBITED.

21mm HEX
(2X)

7/16 DIN FEMALE

CONTACT -

Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

T-Rev.B
PE3C6260 REV 1.0 6
