Plenum 7/16 DIN Female to SMA Male Low PIM
Cable Using SPP-250-LLPL Coax , LF Solder

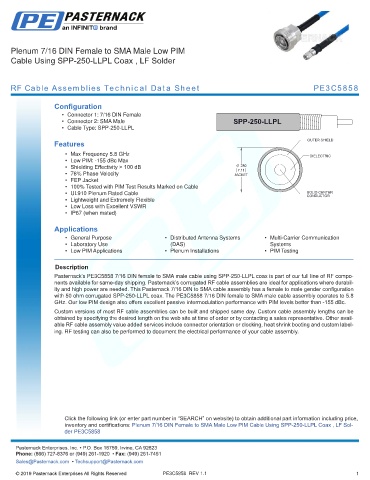

RF Cable Assemblies Technical Data Sheet PE3C5858

Configuration
• Connector 1: 7/16 DIN Female
• Connector 2: SMA Male SPP-250-LLPL
• Cable Type: SPP-250-LLPL

Features OUTER SHIELD
• Max Frequency 5.8 GHz DIELECTRIC
• Low PIM: -155 dBc Max
• Shielding Effectivity > 100 dB .280
7.11
• 76% Phase Velocity JACKET
• FEP Jacket
• 100% Tested with PIM Test Results Marked on Cable
• UL910 Plenum Rated Cable SOLID CENTER
CONDUCTOR
• Lightweight and Extremely Flexible
• Low Loss with Excellent VSWR
• IP67 (when mated)

Applications
• General Purpose • Distributed Antenna Systems • Multi-Carrier Communication
• Laboratory Use (DAS) Systems
• Low PIM Applications • Plenum Installations • PIM Testing
.
Description
Pasternack’s PE3C5858 7/16 DIN female to SMA male cable using SPP-250-LLPL coax is part of our full line of RF compo-
nents available for same-day shipping. Pasternack’s corrugated RF cable assemblies are ideal for applications where durabil-
ity and high power are needed. This Pasternack 7/16 DIN to SMA cable assembly has a female to male gender configuration
with 50 ohm corrugated SPP-250-LLPL coax. The PE3C5858 7/16 DIN female to SMA male cable assembly operates to 5.8
GHz. Our low PIM design also offers excellent passive intermodulation performance with PIM levels better than -155 dBc.
Custom versions of most RF cable assemblies can be built and shipped same day. Custom cable assembly lengths can be
obtained by specifying the desired length on the web site at time of order or by contacting a sales representative. Other avail-
able RF cable assembly value added services include connector orientation or clocking, heat shrink booting and custom label-
ing. RF testing can also be performed to document the electrical performance of your cable assembly.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Plenum 7/16 DIN Female to SMA Male Low PIM Cable Using SPP-250-LLPL Coax , LF Sol-
der PE3C5858 Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C5858 REV 1.1 1
