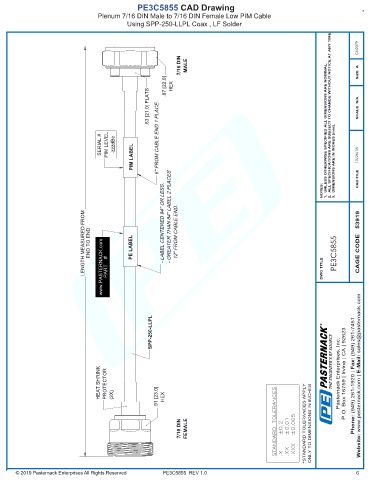

PE3C5855 CAD Drawing
Plenum 7/16 DIN Male to 7/16 DIN Female Low PIM Cable
Using SPP-250-LLPL Coax , LF Solder

CN2379

7/16 DIN MALE SIZE A

.87 [22.0] HEX
.83 [21.0] FLATS 2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME. SCALE N/A

SERIAL # PIM LEVEL -zzzdBc PIM LABEL 6'' FROM CABLE END 1 PLACE. NOTES: 1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL. 3. DIMENSIONS ARE IN INCHES [mm]. 12/26/18 CAD FILE

LENGTH MEASURED FROM END TO END www.PASTERNACK.com PART # PE LABEL - LABEL CENTERED 84'' OR LESS. - GREATER THAN 84'' LABEL 2 PLACES 12'' FROM CABLE END. DWG TITLE PE3C5855 CAGE CODE 53919

SPP-250-LLPL R

P.O. Box 16759 | Irvine | CA | 92623
THE ENGINEER'S RF SOURCE
Pasternack Enterprises, Inc.

HEAT SHRINK PROTECTOR (2X) .91 [23.0] HEX Pasternack does not make Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com | E-Mail: sales@pasternack.com

.XXX ±0.005
.XX ±0.01
7/16 DIN FEMALE STANDARD TOLERANCES *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES -
.X ±0.2
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C5855 REV 1.0 6
