Fire Rated 7/16 DIN Male to 7/16 DIN Male Low PIM Cable
Using SPF-500 Coax Using Times Microwave Parts

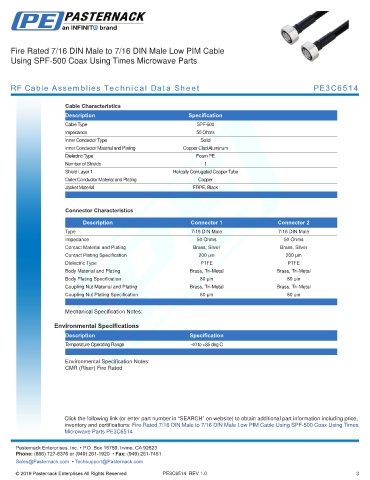

RF Cable Assemblies Technical Data Sheet PE3C6514

Cable Characteristics
Description Specification
Cable Type SPF-500
Impedance 50 Ohms
Inner Conductor Type Solid
Inner Conductor Material and Plating Copper Clad Aluminum
Dielectric Type Foam PE
Number of Shields 1
Shield Layer 1 Helically Corrugated Copper Tube
Outer Conductor Material and Plating Copper
Jacket Material FRPE, Black
.

Connector Characteristics
Description Connector 1 Connector 2
Type 7/16 DIN Male 7/16 DIN Male
Impedance 50 Ohms 50 Ohms
Contact Material and Plating Brass, Silver Brass, Silver
Contact Plating Specification 200 µin 200 µin
Dielectric Type PTFE PTFE
Body Material and Plating Brass, Tri-Metal Brass, Tri-Metal
Body Plating Specification 80 µin 80 µin
Coupling Nut Material and Plating Brass, Tri-Metal Brass, Tri-Metal
Coupling Nut Plating Specification 80 µin 80 µin
.
Mechanical Specification Notes:
Environmental Specifications
Description Specification
Temperature Operating Range -40 to +85 deg C
.
Environmental Specification Notes:
CMR (Riser) Fire Rated

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Fire Rated 7/16 DIN Male to 7/16 DIN Male Low PIM Cable Using SPF-500 Coax Using Times
Microwave Parts PE3C6514 Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C6514 REV 1.0 3
