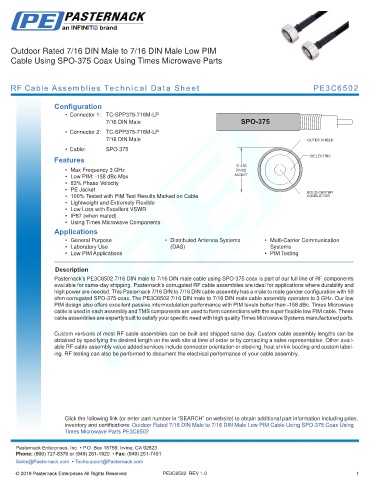

Outdoor Rated 7/16 DIN Male to 7/16 DIN Male Low PIM
Cable Using SPO-375 Coax Using Times Microwave Parts

RF Cable Assemblies Technical Data Sheet PE3C6502

Configuration
• Connector 1: TC-SPP375-716M-LP
7/16 DIN Male SPO-375
• Connector 2: TC-SPP375-716M-LP
7/16 DIN Male OUTER SHIELD
• Cable: SPO-375
Features DIELECTRIC
.430
• Max Frequency 3 GHz 10.92
• Low PIM: -158 dBc Max JACKET
• 83% Phase Velocity
• PE Jacket SOLID CENTER
• 100% Tested with PIM Test Results Marked on Cable CONDUCTOR
• Lightweight and Extremely Flexible
• Low Loss with Excellent VSWR
• IP67 (when mated)
• Using Times Microwave Components
Applications
• General Purpose • Distributed Antenna Systems • Multi-Carrier Communication
• Laboratory Use (DAS) Systems
• Low PIM Applications • PIM Testing
.
Description
Pasternack’s PE3C6502 7/16 DIN male to 7/16 DIN male cable using SPO-375 coax is part of our full line of RF components
available for same-day shipping. Pasternack’s corrugated RF cable assemblies are ideal for applications where durability and
high power are needed. This Pasternack 7/16 DIN to 7/16 DIN cable assembly has a male to male gender configuration with 50
ohm corrugated SPO-375 coax. The PE3C6502 7/16 DIN male to 7/16 DIN male cable assembly operates to 3 GHz. Our low
PIM design also offers excellent passive intermodulation performance with PIM levels better than -158 dBc. Times Microwave
cable is used in each assembly and TMS components are used to form connections with the super flexible low PIM cable. These
cable assemblies are expertly built to satisfy your specific need with high quality Times Microwave Systems manufactured parts.

Custom versions of most RF cable assemblies can be built and shipped same day. Custom cable assembly lengths can be
obtained by specifying the desired length on the web site at time of order or by contacting a sales representative. Other avail-
able RF cable assembly value added services include connector orientation or clocking, heat shrink booting and custom label-
ing. RF testing can also be performed to document the electrical performance of your cable assembly.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Outdoor Rated 7/16 DIN Male to 7/16 DIN Male Low PIM Cable Using SPO-375 Coax Using
Times Microwave Parts PE3C6502 Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
