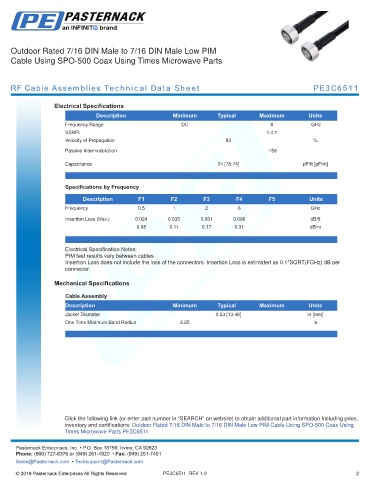

Outdoor Rated 7/16 DIN Male to 7/16 DIN Male Low PIM
Cable Using SPO-500 Coax Using Times Microwave Parts

RF Cable Assemblies Technical Data Sheet PE3C6511

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 6 GHz
VSWR 1.4:1
Velocity of Propagation 83 %
Passive Intermodulation -158

Capacitance 24 [78.74] pF/ft [pF/m]

.
Specifications by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency 0.5 1 2 6 GHz
Insertion Loss (Max.) 0.024 0.035 0.051 0.096 dB/ft
0.08 0.11 0.17 0.31 dB/m

.
Electrical Specification Notes:
PIM test results vary between cables
Insertion Loss does not include the loss of the connectors. Insertion Loss is estimated as 0.1*SQRT(FGHz) dB per
connector.

Mechanical Specifications
Cable Assembly
Description Minimum Typical Maximum Units
Jacket Diameter 0.53 [13.46] in [mm]
One Time Minimum Bend Radius 2.25 in
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Outdoor Rated 7/16 DIN Male to 7/16 DIN Male Low PIM Cable Using SPO-500 Coax Using
Times Microwave Parts PE3C6511 Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
