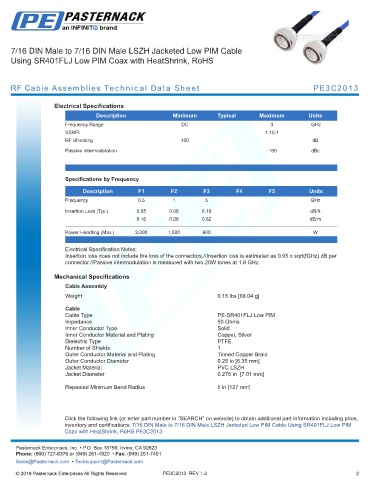

7/16 DIN Male to 7/16 DIN Male LSZH Jacketed Low PIM Cable
Using SR401FLJ Low PIM Coax with HeatShrink, RoHS

RF Cable Assemblies Technical Data Sheet PE3C2013

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 3 GHz
VSWR 1.15:1
RF Shielding 100 dB
Passive Intermodulation -160 dBc

.
Specifications by Frequency

Description F1 F2 F3 F4 F5 Units
Frequency 0.5 1 5 GHz
Insertion Loss (Typ.) 0.05 0.08 0.19 dB/ft
0.16 0.26 0.62 dB/m

Power Handling (Max.) 2,000 1,500 600 W
.
Electrical Specification Notes:
Insertion loss does not include the loss of the connectors.//Insertion loss is estimated as 0.05 x sqrt(fGHz) dB per
connector.//Passive intermodulation is measured with two 20W tones at 1.8 GHz.

Mechanical Specifications
Cable Assembly
.
Weight 0.15 lbs [68.04 g]
Cable
Cable Type PE-SR401FLJ Low PIM
Impedance 50 Ohms
Inner Conductor Type Solid
Inner Conductor Material and Plating Copper, Silver
Dielectric Type PTFE
Number of Shields 1
Outer Conductor Material and Plating Tinned Copper Braid
Outer Conductor Diameter 0.25 in [6.35 mm]
Jacket Material PVC LSZH
Jacket Diameter 0.276 in [7.01 mm]
.
Repeated Minimum Bend Radius 5 in [127 mm]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 7/16 DIN Male to 7/16 DIN Male LSZH Jacketed Low PIM Cable Using SR401FLJ Low PIM
Coax with HeatShrink, RoHS PE3C2013 Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C2013 REV 1.2 2
