Page 1306 - 1.0/2.3 to BMA RF Cable Assembly Datasheets
P. 1306

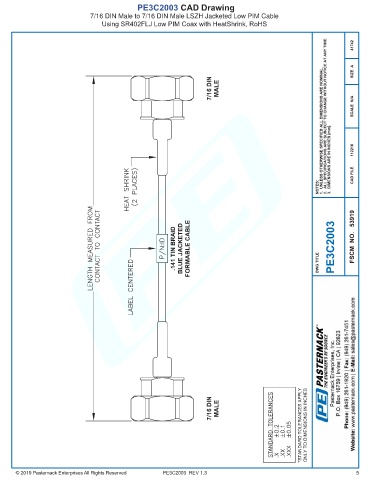

PE3C2003 CAD Drawing
7/16 DIN Male to 7/16 DIN Male LSZH Jacketed Low PIM Cable
Using SR402FLJ Low PIM Coax with HeatShrink, RoHS
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
PE3C2003 REV 1.3 5
