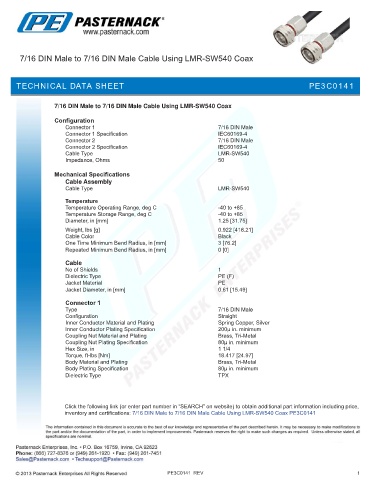

7/16 DIN Male to 7/16 DIN Male Cable Using LMR-SW540 Coax

TECHNICAL DATA SHEETATA SHEET
TECHNICAL D PE3C0141

7/16 DIN Male to 7/16 DIN Male Cable Using LMR-SW540 Coax

Configuration
Connector 1 7/16 DIN Male
Connector 1 Specification IEC60169-4
Connector 2 7/16 DIN Male
Connector 2 Specification IEC60169-4
Cable Type LMR-SW540
Impedance, Ohms 50

Mechanical Specifications
Cable Assembly
Cable Type LMR-SW540

Temperature
Temperature Operating Range, deg C -40 to +85
Temperature Storage Range, deg C -40 to +85
Diameter, in [mm] 1.25 [31.75]
.
Weight, lbs [g] 0.922 [418.21]
Cable Color Black
One Time Minimum Bend Radius, in [mm] 3 [76.2]
Repeated Minimum Bend Radius, in [mm] 0 [0]
Cable
No of Shields 1
Dielectric Type PE (F)
Jacket Material PE
Jacket Diameter, in [mm] 0.61 [15.49]

Connector 1
Type 7/16 DIN Male
Configuration Straight
Inner Conductor Material and Plating Spring Copper, Silver
Inner Conductor Plating Specification 200µ in. minimum
Coupling Nut Material and Plating Brass, Tri-Metal
Coupling Nut Plating Specification 80µ in. minimum
Hex Size, in 1 1/4
Torque, ft-lbs [Nm] 18.417 [24.97]
Body Material and Plating Brass, Tri-Metal
Body Plating Specification 80µ in. minimum
Dielectric Type TPX

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 7/16 DIN Male to 7/16 DIN Male Cable Using LMR-SW540 Coax PE3C0141

PE3C0141 REV 1
