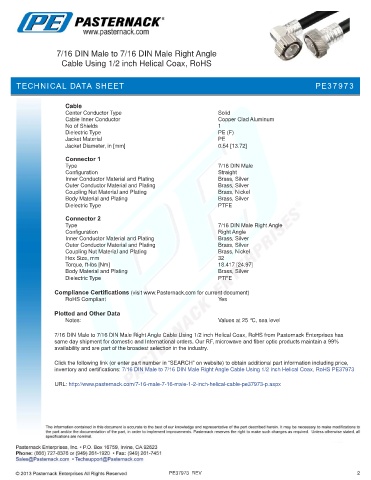

7/16 DIN Male to 7/16 DIN Male Right Angle
Cable Using 1/2 inch Helical Coax, RoHS

TECHNICAL D PE37973
TECHNICAL DATA SHEETATA SHEET

Cable
Center Conductor Type Solid
Cable Inner Conductor Copper Clad Aluminum
No of Shields 1
Dielectric Type PE (F)
Jacket Material PE
Jacket Diameter, in [mm] 0.54 [13.72]

Connector 1
Type 7/16 DIN Male
Configuration Straight
Inner Conductor Material and Plating Brass, Silver
Outer Conductor Material and Plating Brass, Silver
Coupling Nut Material and Plating Brass, Nickel
Body Material and Plating Brass, Silver
Dielectric Type PTFE
Connector 2
Type 7/16 DIN Male Right Angle
Configuration Right Angle
Inner Conductor Material and Plating Brass, Silver
Outer Conductor Material and Plating Brass, Silver
Coupling Nut Material and Plating Brass, Nickel
Hex Size, mm 32
Torque, ft-lbs [Nm] 18.417 [24.97]
Body Material and Plating Brass, Silver
Dielectric Type PTFE

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

7/16 DIN Male to 7/16 DIN Male Right Angle Cable Using 1/2 inch Helical Coax, RoHS from Pasternack Enterprises has
same day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99%
availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 7/16 DIN Male to 7/16 DIN Male Right Angle Cable Using 1/2 inch Helical Coax, RoHS PE37973

URL: http://www.pasternack.com/7-16-male-7-16-male-1-2-inch-helical-cable-pe37973-p.aspx

PE37973 REV 2
