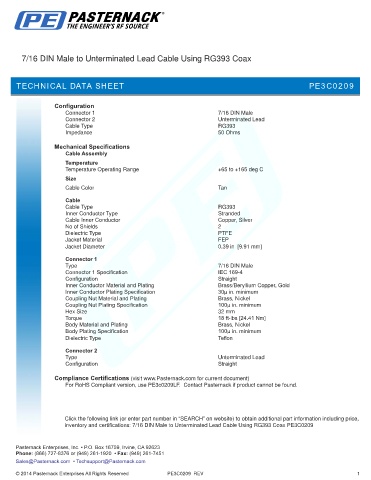

7/16 DIN Male to Unterminated Lead Cable Using RG393 Coax

TECHNICAL D PE3C0209
TECHNICAL DATA SHEETATA SHEET

Configuration
Connector 1 7/16 DIN Male
Connector 2 Unterminated Lead
Cable Type RG393
Impedance 50 Ohms
Mechanical Specifications
Cable Assembly
Temperature
Temperature Operating Range +65 to +165 deg C
Size
.
Cable Color Tan
Cable
Cable Type RG393
Inner Conductor Type Stranded
Cable Inner Conductor Copper, Silver
No of Shields 2
Dielectric Type PTFE
Jacket Material FEP
Jacket Diameter 0.39 in [9.91 mm]

Connector 1
Type 7/16 DIN Male
Connector 1 Specification IEC 169-4
Configuration Straight
Inner Conductor Material and Plating Brass/Beryllium Copper, Gold
Inner Conductor Plating Specification 30µ in. minimum
Coupling Nut Material and Plating Brass, Nickel
Coupling Nut Plating Specification 100µ in. minimum
Hex Size 32 mm
Torque 18 ft-lbs [24.41 Nm]
Body Material and Plating Brass, Nickel
Body Plating Specification 100µ in. minimum
Dielectric Type Teflon

Connector 2
Type Unterminated Lead
Configuration Straight

Compliance Certifications (visit www.Pasternack.com for current document)
For RoHS Compliant version, use PE3c0209LF. Contact Pasternack if product cannot be found.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 7/16 DIN Male to Unterminated Lead Cable Using RG393 Coax PE3C0209

PE3C0209 REV 1
