Plenum 7/16 DIN Male to N Female Bulkhead Low PIM Cable
Using SPP-250-LLPL Coax Using Times Microwave Parts

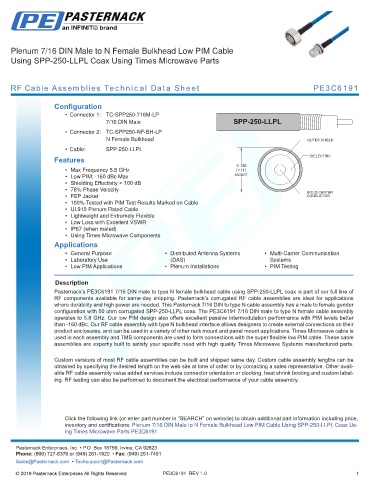

RF Cable Assemblies Technical Data Sheet PE3C6191

Configuration
• Connector 1: TC-SPP250-716M-LP
7/16 DIN Male SPP-250-LLPL
• Connector 2: TC-SPP250-NF-BH-LP
N Female Bulkhead OUTER SHIELD
• Cable: SPP-250-LLPL
Features DIELECTRIC
.280
• Max Frequency 5.8 GHz 7.11
• Low PIM: -160 dBc Max JACKET
• Shielding Effectivity > 100 dB
• 76% Phase Velocity SOLID CENTER
• FEP Jacket CONDUCTOR
• 100% Tested with PIM Test Results Marked on Cable
• UL910 Plenum Rated Cable
• Lightweight and Extremely Flexible
• Low Loss with Excellent VSWR
• IP67 (when mated)
• Using Times Microwave Components
Applications

• General Purpose • Distributed Antenna Systems • Multi-Carrier Communication
• Laboratory Use (DAS) Systems
• Low PIM Applications • Plenum Installations • PIM Testing
.
Description
Pasternack’s PE3C6191 7/16 DIN male to type N female bulkhead cable using SPP-250-LLPL coax is part of our full line of
RF components available for same-day shipping. Pasternack’s corrugated RF cable assemblies are ideal for applications
where durability and high power are needed. This Pasternack 7/16 DIN to type N cable assembly has a male to female gender
configuration with 50 ohm corrugated SPP-250-LLPL coax. The PE3C6191 7/16 DIN male to type N female cable assembly
operates to 5.8 GHz. Our low PIM design also offers excellent passive intermodulation performance with PIM levels better
than -160 dBc. Our RF cable assembly with type N bulkhead interface allows designers to create external connections on their
product enclosures, and can be used in a variety of other rack mount and panel mount applications. Times Microwave cable is
used in each assembly and TMS components are used to form connections with the super flexible low PIM cable. These cable
assemblies are expertly built to satisfy your specific need with high quality Times Microwave Systems manufactured parts.

Custom versions of most RF cable assemblies can be built and shipped same day. Custom cable assembly lengths can be
obtained by specifying the desired length on the web site at time of order or by contacting a sales representative. Other avail-
able RF cable assembly value added services include connector orientation or clocking, heat shrink booting and custom label-
ing. RF testing can also be performed to document the electrical performance of your cable assembly.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Plenum 7/16 DIN Male to N Female Bulkhead Low PIM Cable Using SPP-250-LLPL Coax Us-
ing Times Microwave Parts PE3C6191 Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C6191 REV 1.0 1
