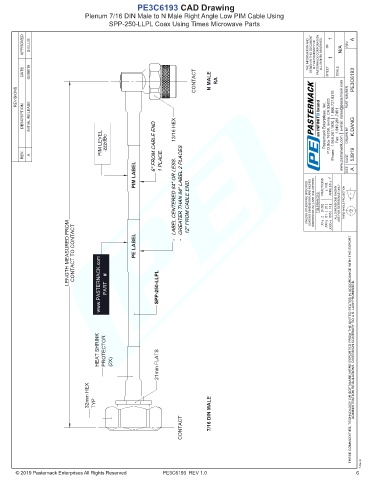

PE3C6193 CAD Drawing
Plenum 7/16 DIN Male to N Male Right Angle Low PIM Cable Using
SPP-250-LLPL Coax Using Times Microwave Parts

APPROVED S.ELLIS THE INFORMATION AND DESIGN IN THIS DOCUMENT IS THE PROPERTY OF PASTERNACK CORPORATION. ALL RIGHTS RESERVED. 1 1 N/A REV A

DATE 04/09/19 CONTACT N MALE RA SHEET OF SCALE PE3C6193

REVISIONS PART NUMBER

DESCRIPTION INITIAL RELEASE 13/16 HEX Pasternack Enterprises, Inc. P.O.Box 16759, Irvine, CA 92623. Phone: 1.949.261.1920 │ 1.866.727.8376 Fax: 1.949.261.7451 www.pasternack.com │ e-mail: sales@pasternack.com K.DANG

PIM LEVEL -zzzdBc 6" FROM CABLE END DRAWN BY

REV. A CAGE 53919
PIM LABEL - LABEL CENTERED 84" OR LESS. - GREATER THAN 84" LABEL 2 PLACES 12" FROM CABLE END. UNLESS OTHERWISE SPECIFIED LEADING DIMENSIONS ARE INCHES DIMENSIONS IN [ ] ARE MILLIMETERS TOLERANCES: FRACTIONS .2 [5.08] ± 1/32 .01 [ .25 ] ANGLES ± 1° .005 [ .13 ] ALL DIMENSIONS SHOWN ARE FOR REFERENCE ONLY. THIRD-ANGLE PROJECTION SIZE
1 PLACE. A

LENGTH MEASURED FROM CONTACT TO CONTACT www.PASTERNACK.com PART # PE LABEL SPP-250-LLPL .X=± .XX=± .XXX=±

HEAT SHRINK PROTECTOR (2X) 21mm FLATS THESE COMMODITIES, TECHNOLOGY OR SOFTWARE WERE EXPORTED FROM THE UNITED STATES IN ACCORDANCE WITH THE EXPORT ADMINISTRATION REGULATIONS. DIVERSION CONTRARY TO U.S. LAW PROHIBITED.

32mm HEX TYP

CONTACT 7/16 DIN MALE -

Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

T-Rev.B
PE3C6193 REV 1.0 6
