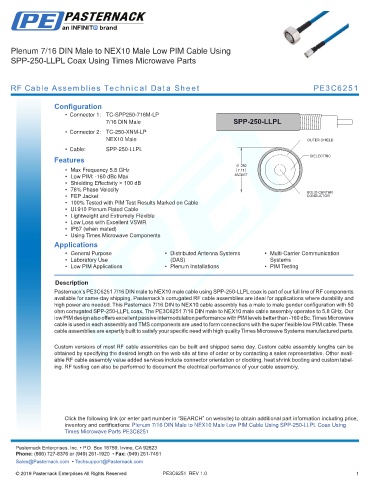

Plenum 7/16 DIN Male to NEX10 Male Low PIM Cable Using
SPP-250-LLPL Coax Using Times Microwave Parts

RF Cable Assemblies Technical Data Sheet PE3C6251

Configuration
• Connector 1: TC-SPP250-716M-LP
7/16 DIN Male SPP-250-LLPL
• Connector 2: TC-250-XNM-LP
NEX10 Male OUTER SHIELD
• Cable: SPP-250-LLPL
Features DIELECTRIC
.280
• Max Frequency 5.8 GHz 7.11
• Low PIM: -160 dBc Max JACKET
• Shielding Effectivity > 100 dB
• 76% Phase Velocity SOLID CENTER
• FEP Jacket CONDUCTOR
• 100% Tested with PIM Test Results Marked on Cable
• UL910 Plenum Rated Cable
• Lightweight and Extremely Flexible
• Low Loss with Excellent VSWR
• IP67 (when mated)
• Using Times Microwave Components
Applications

• General Purpose • Distributed Antenna Systems • Multi-Carrier Communication
• Laboratory Use (DAS) Systems
• Low PIM Applications • Plenum Installations • PIM Testing
.
Description
Pasternack’s PE3C6251 7/16 DIN male to NEX10 male cable using SPP-250-LLPL coax is part of our full line of RF components
available for same-day shipping. Pasternack’s corrugated RF cable assemblies are ideal for applications where durability and
high power are needed. This Pasternack 7/16 DIN to NEX10 cable assembly has a male to male gender configuration with 50
ohm corrugated SPP-250-LLPL coax. The PE3C6251 7/16 DIN male to NEX10 male cable assembly operates to 5.8 GHz. Our
low PIM design also offers excellent passive intermodulation performance with PIM levels better than -160 dBc. Times Microwave
cable is used in each assembly and TMS components are used to form connections with the super flexible low PIM cable. These
cable assemblies are expertly built to satisfy your specific need with high quality Times Microwave Systems manufactured parts.

Custom versions of most RF cable assemblies can be built and shipped same day. Custom cable assembly lengths can be
obtained by specifying the desired length on the web site at time of order or by contacting a sales representative. Other avail-
able RF cable assembly value added services include connector orientation or clocking, heat shrink booting and custom label-
ing. RF testing can also be performed to document the electrical performance of your cable assembly.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Plenum 7/16 DIN Male to NEX10 Male Low PIM Cable Using SPP-250-LLPL Coax Using
Times Microwave Parts PE3C6251 Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C6251 REV 1.0 1
