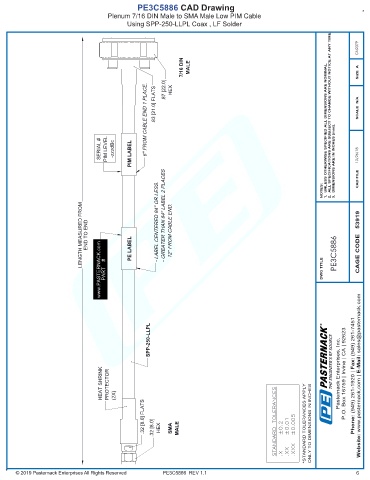

PE3C5886 CAD Drawing
Plenum 7/16 DIN Male to SMA Male Low PIM Cable
Using SPP-250-LLPL Coax , LF Solder

CN2379

7/16 DIN MALE SIZE A

.87 [22.0]
6'' FROM CABLE END 1 PLACE. .83 [21.0] FLATS 1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL. 2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME. SCALE N/A
HEX

SERIAL # PIM LEVEL -zzzdBc PIM LABEL NOTES: 3. DIMENSIONS ARE IN INCHES [mm]. 12/26/18 CAD FILE

LENGTH MEASURED FROM END TO END PE LABEL - LABEL CENTERED 84'' OR LESS. - GREATER THAN 84'' LABEL 2 PLACES 12'' FROM CABLE END. CAGE CODE 53919

www.PASTERNACK.com PART # DWG TITLE PE3C5886

SPP-250-LLPL R THE ENGINEER'S RF SOURCE
P.O. Box 16759 | Irvine | CA | 92623
Pasternack Enterprises, Inc.

HEAT SHRINK PROTECTOR (2X) Pasternack does not make Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com | E-Mail: sales@pasternack.com

.32 [8.0] FLATS STANDARD TOLERANCES *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES

.XXX ±0.005
.XX ±0.01
.32 [8.0]
.X ±0.2
MALE
HEX
SMA
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation. -

PE3C5886 REV 1.1 6
