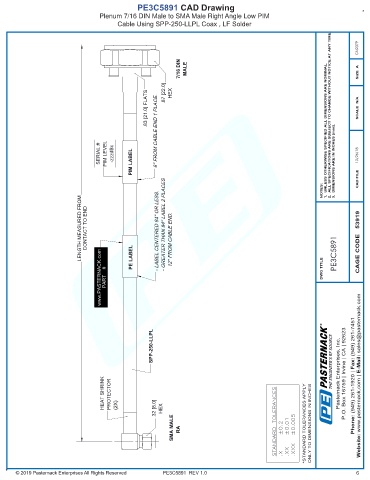

PE3C5891 CAD Drawing
Plenum 7/16 DIN Male to SMA Male Right Angle Low PIM
Cable Using SPP-250-LLPL Coax , LF Solder

CN2379

7/16 DIN MALE SIZE A

.83 [21.0] FLATS 6'' FROM CABLE END 1 PLACE. .87 [22.0] HEX 1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL. 2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME. SCALE N/A

SERIAL # PIM LEVEL -zzzdBc PIM LABEL NOTES: 3. DIMENSIONS ARE IN INCHES [mm]. 12/26/18 CAD FILE

LENGTH MEASURED FROM CONTACT TO END - LABEL CENTERED 84'' OR LESS. - GREATER THAN 84'' LABEL 2 PLACES 12'' FROM CABLE END. CAGE CODE 53919

www.PASTERNACK.com PART # PE LABEL DWG TITLE PE3C5891

R
P.O. Box 16759 | Irvine | CA | 92623
SPP-250-LLPL THE ENGINEER'S RF SOURCE
Pasternack Enterprises, Inc.

HEAT SHRINK PROTECTOR (2X) .32 [8.0] HEX Pasternack does not make Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com | E-Mail: sales@pasternack.com

.XXX ±0.005
SMA MALE STANDARD TOLERANCES *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES -
.XX ±0.01
.X ±0.2
RA
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C5891 REV 1.0 6
