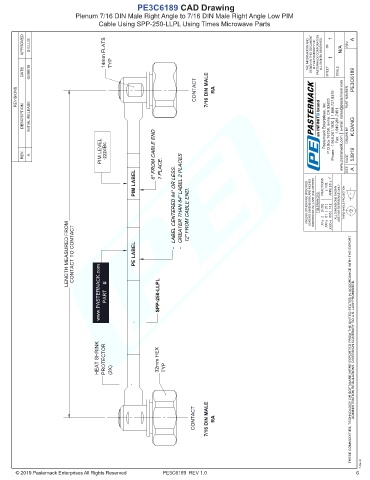

PE3C6189 CAD Drawing
Plenum 7/16 DIN Male Right Angle to 7/16 DIN Male Right Angle Low PIM
Cable Using SPP-250-LLPL Using Times Microwave Parts

APPROVED S.ELLIS 14mm FLATS THE INFORMATION AND DESIGN IN THIS DOCUMENT IS THE PROPERTY OF PASTERNACK CORPORATION. ALL RIGHTS RESERVED. 1 1 N/A REV A

DATE 04/09/19 TYP SHEET OF SCALE PE3C6189

REVISIONS CONTACT 7/16 DIN MALE RA PART NUMBER

DESCRIPTION INITIAL RELEASE Pasternack Enterprises, Inc. P.O.Box 16759, Irvine, CA 92623. Phone: 1.949.261.1920 │ 1.866.727.8376 Fax: 1.949.261.7451 www.pasternack.com │ e-mail: sales@pasternack.com K.DANG

PIM LEVEL -zzzdBc DRAWN BY

REV. A 6" FROM CABLE END CAGE 53919

PIM LABEL - LABEL CENTERED 84" OR LESS. - GREATER THAN 84" LABEL 2 PLACES 12" FROM CABLE END. UNLESS OTHERWISE SPECIFIED LEADING DIMENSIONS ARE INCHES DIMENSIONS IN [ ] ARE MILLIMETERS TOLERANCES: FRACTIONS .2 [5.08] ± 1/32 .01 [ .25 ] ANGLES ± 1° .005 [ .13 ] ALL DIMENSIONS SHOWN ARE FOR REFERENCE ONLY. THIRD-ANGLE PROJECTION
1 PLACE. SIZE A

LENGTH MEASURED FROM CONTACT TO CONTACT PE LABEL .X=± .XX=± .XXX=±

www.PASTERNACK.com PART # SPP-250-LLPL

HEAT SHRINK PROTECTOR (2X) 32mm HEX TYP THESE COMMODITIES, TECHNOLOGY OR SOFTWARE WERE EXPORTED FROM THE UNITED STATES IN ACCORDANCE WITH THE EXPORT ADMINISTRATION REGULATIONS. DIVERSION CONTRARY TO U.S. LAW PROHIBITED.

CONTACT 7/16 DIN MALE RA

Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation. -

T-Rev.B
PE3C6189 REV 1.0 6
