Page 1551 - 1.0/2.3 to BMA RF Cable Assembly Datasheets

Snap-On BMA Jack to Snap-On BMA Jack
Cable Using PE-SR402FLJ Coax

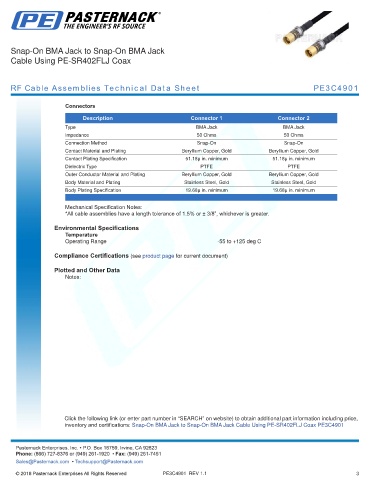

RF Cable Assemblies Technical Data Sheet PE3C4901

Connectors

Description Connector 1 Connector 2
Type BMA Jack BMA Jack
Impedance 50 Ohms 50 Ohms
Connection Method Snap-On Snap-On
Contact Material and Plating Beryllium Copper, Gold Beryllium Copper, Gold
Contact Plating Specification 51.18µ in. minimum 51.18µ in. minimum
Dielectric Type PTFE PTFE
Outer Conductor Material and Plating Beryllium Copper, Gold Beryllium Copper, Gold
Body Material and Plating Stainless Steel, Gold Stainless Steel, Gold
Body Plating Specification 19.68µ in. minimum 19.68µ in. minimum
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.

Environmental Specifications
Temperature
Operating Range -55 to +125 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Snap-On BMA Jack to Snap-On BMA Jack Cable Using PE-SR402FLJ Coax PE3C4901
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C4901 REV 1.1 3
