Snap-On BMA Jack to Snap-On BMA
Jack Cable Using RG316 Coax

RF Cable Assemblies Technical Data Sheet PE3C4938

Typical Performance Data
2X
#2-56 UNC-2B
.378 +.000
-.002
0.00
9.60 -0.05

.559±.004
.500±.003 14.20±0.10
12.70±0.07
.450 +.001
-.000
11.43 +0.03
0.00

MOUNTING HOLE

.243
.242
.341 +.002 .317±.001 6.17
-.000
8.66 +0.05 8.05±0.02 6.15
0.00

MOUNTING HOLE

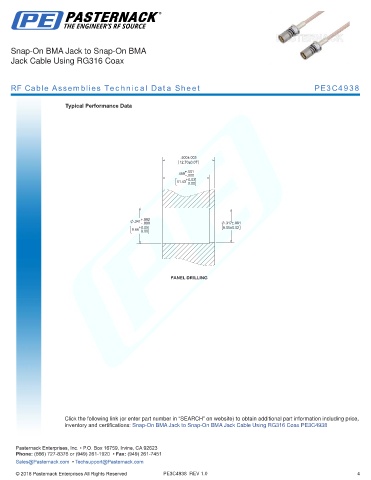

PANEL DRILLING

.320 +.001
-.000
8.13 +0.03
0.00

MOUNTING HOLE

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Snap-On BMA Jack to Snap-On BMA Jack Cable Using RG316 Coax PE3C4938
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
SECTION A-A
SCALE 4 : 1

A A
PE3C4938 REV 1.0 4
