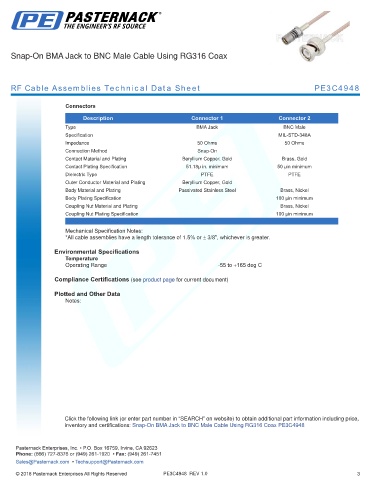

Snap-On BMA Jack to BNC Male Cable Using RG316 Coax

RF Cable Assemblies Technical Data Sheet PE3C4948

Connectors

Description Connector 1 Connector 2
Type BMA Jack BNC Male
Specification MIL-STD-348A
Impedance 50 Ohms 50 Ohms
Connection Method Snap-On
Contact Material and Plating Beryllium Copper, Gold Brass, Gold
Contact Plating Specification 51.18µ in. minimum 50 µin minimum
Dielectric Type PTFE PTFE
Outer Conductor Material and Plating Beryllium Copper, Gold
Body Material and Plating Passivated Stainless Steel Brass, Nickel
Body Plating Specification 100 µin minimum
Coupling Nut Material and Plating Brass, Nickel
Coupling Nut Plating Specification 100 µin minimum
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.

Environmental Specifications
Temperature
Operating Range -55 to +165 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Snap-On BMA Jack to BNC Male Cable Using RG316 Coax PE3C4948
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
