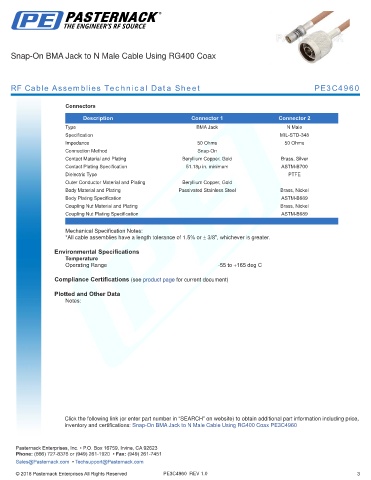

Snap-On BMA Jack to N Male Cable Using RG400 Coax

RF Cable Assemblies Technical Data Sheet PE3C4960

Connectors

Description Connector 1 Connector 2
Type BMA Jack N Male
Specification MIL-STD-348
Impedance 50 Ohms 50 Ohms
Connection Method Snap-On
Contact Material and Plating Beryllium Copper, Gold Brass, Silver
Contact Plating Specification 51.18µ in. minimum ASTM-B700
Dielectric Type PTFE
Outer Conductor Material and Plating Beryllium Copper, Gold
Body Material and Plating Passivated Stainless Steel Brass, Nickel
Body Plating Specification ASTM-B689
Coupling Nut Material and Plating Brass, Nickel
Coupling Nut Plating Specification ASTM-B689
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.

Environmental Specifications
Temperature
Operating Range -55 to +165 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Snap-On BMA Jack to N Male Cable Using RG400 Coax PE3C4960
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C4960 REV 1.0 3
