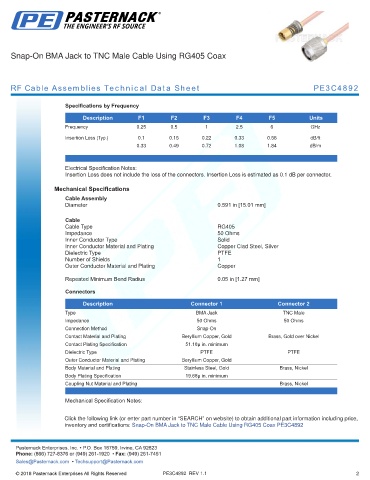

Snap-On BMA Jack to TNC Male Cable Using RG405 Coax

RF Cable Assemblies Technical Data Sheet PE3C4892

Specifications by Frequency

Description F1 F2 F3 F4 F5 Units
Frequency 0.25 0.5 1 2.5 6 GHz
Insertion Loss (Typ.) 0.1 0.15 0.22 0.33 0.56 dB/ft
0.33 0.49 0.72 1.08 1.84 dB/m

.
Electrical Specification Notes:
Insertion Loss does not include the loss of the connectors. Insertion Loss is estimated as 0.1 dB per connector.

Mechanical Specifications
Cable Assembly
Diameter 0.591 in [15.01 mm]
.
Cable
Cable Type RG405
Impedance 50 Ohms
Inner Conductor Type Solid
Inner Conductor Material and Plating Copper Clad Steel, Silver
Dielectric Type PTFE
Number of Shields 1
Outer Conductor Material and Plating Copper
.
Repeated Minimum Bend Radius 0.05 in [1.27 mm]
Connectors

Description Connector 1 Connector 2
Type BMA Jack TNC Male
Impedance 50 Ohms 50 Ohms
Connection Method Snap-On
Contact Material and Plating Beryllium Copper, Gold Brass, Gold over Nickel
Contact Plating Specification 51.18µ in. minimum
Dielectric Type PTFE PTFE
Outer Conductor Material and Plating Beryllium Copper, Gold
Body Material and Plating Stainless Steel, Gold Brass, Nickel
Body Plating Specification 19.68µ in. minimum
Coupling Nut Material and Plating Brass, Nickel
.
Mechanical Specification Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Snap-On BMA Jack to TNC Male Cable Using RG405 Coax PE3C4892
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C4892 REV 1.1 2
