Slide-On BMA Jack 2 Hole Flange to Slide-On BMA
Jack 2 Hole Flange Cable Using LMR-100 Coax

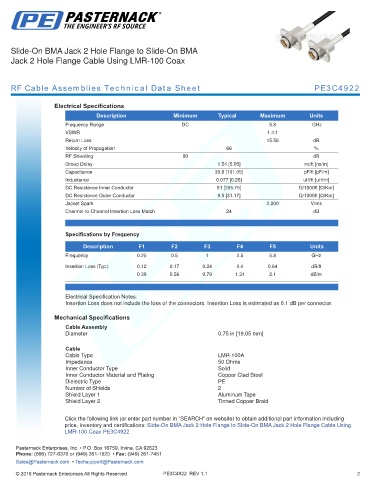

RF Cable Assemblies Technical Data Sheet PE3C4922

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 5.8 GHz
VSWR 1.4:1
Return Loss 15.56 dB
Velocity of Propagation 66 %
RF Shielding 90 dB
Group Delay 1.54 [5.05] ns/ft [ns/m]
Capacitance 30.8 [101.05] pF/ft [pF/m]
Inductance 0.077 [0.25] uH/ft [uH/m]
DC Resistance Inner Conductor 81 [265.75] Ω/1000ft [Ω/Km]
DC Resistance Outer Conductor 9.5 [31.17] Ω/1000ft [Ω/Km]
Jacket Spark 2,000 Vrms
Channel-to-Channel Insertion Loss Match 24 dB
.

Specifications by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency 0.25 0.5 1 2.5 5.8 GHz
Insertion Loss (Typ.) 0.12 0.17 0.24 0.4 0.64 dB/ft
0.39 0.56 0.79 1.31 2.1 dB/m
.
Electrical Specification Notes:
Insertion Loss does not include the loss of the connectors. Insertion Loss is estimated as 0.1 dB per connector.

Mechanical Specifications
Cable Assembly
Diameter 0.75 in [19.05 mm]
.
Cable
Cable Type LMR-100A
Impedance 50 Ohms
Inner Conductor Type Solid
Inner Conductor Material and Plating Copper Clad Steel
Dielectric Type PE
Number of Shields 2
Shield Layer 1 Aluminum Tape
Shield Layer 2 Tinned Copper Braid

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: Slide-On BMA Jack 2 Hole Flange to Slide-On BMA Jack 2 Hole Flange Cable Using
LMR-100 Coax PE3C4922 Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C4922 REV 1.1 2
