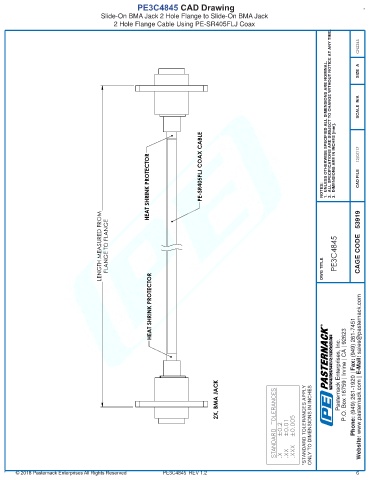

PE3C4845 CAD Drawing
Slide-On BMA Jack 2 Hole Flange to Slide-On BMA Jack
2 Hole Flange Cable Using PE-SR405FLJ Coax
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOU T NOTICE AT ANY TIME.


1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SIZE A

SCALE N/A

  NOTES: 3. DIMENSIONS ARE IN INCHES [mm].  CAD FILE

  DWG TITLE  CAGE CODE 53919

 R E-Mail: sales@pasternack.com

Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623 Phone: (949) 261-1920 | Fax: (949) 261-7451

 Website: www.pasternack.com |
ONLY TO DIMENSIONS IN INCHES
*STANDARD TOLERANCES APPLY





Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation. -

PE3C4845 REV 1.2 6
