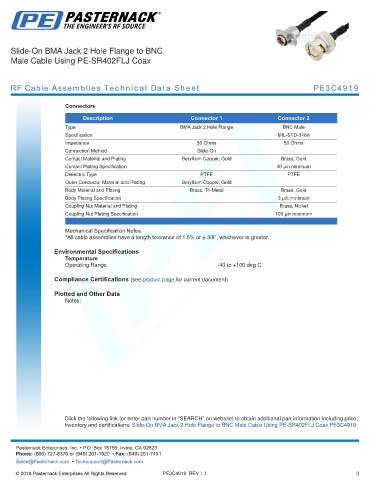

Slide-On BMA Jack 2 Hole Flange to BNC
Male Cable Using PE-SR402FLJ Coax

RF Cable Assemblies Technical Data Sheet PE3C4919

Connectors

Description Connector 1 Connector 2
Type BMA Jack 2 Hole Flange BNC Male
Specification MIL-STD-348A
Impedance 50 Ohms 50 Ohms
Connection Method Slide-On
Contact Material and Plating Beryllium Copper, Gold Brass, Gold
Contact Plating Specification 30 µin minimum
Dielectric Type PTFE PTFE
Outer Conductor Material and Plating Beryllium Copper, Gold
Body Material and Plating Brass, Tri-Metal Brass, Gold
Body Plating Specification 3 µin minimum
Coupling Nut Material and Plating Brass, Nickel
Coupling Nut Plating Specification 100 µin minimum
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.

Environmental Specifications
Temperature
Operating Range -40 to +100 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Slide-On BMA Jack 2 Hole Flange to BNC Male Cable Using PE-SR402FLJ Coax PE3C4919
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C4919 REV 1.1 3
