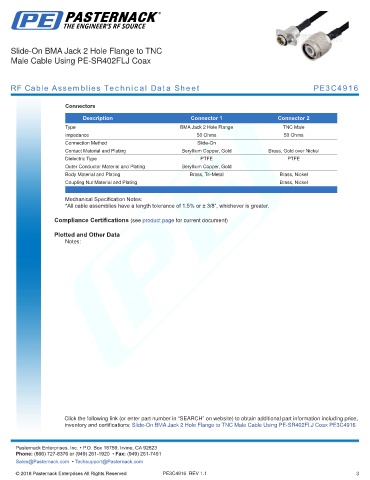

Slide-On BMA Jack 2 Hole Flange to TNC
Male Cable Using PE-SR402FLJ Coax
RF Cable Assemblies Technical Data Sheet PE3C4916
Connectors
Description Connector 1 Connector 2
Type BMA Jack 2 Hole Flange TNC Male
Impedance 50 Ohms 50 Ohms
Connection Method Slide-On
Contact Material and Plating Beryllium Copper, Gold Brass, Gold over Nickel
Dielectric Type PTFE PTFE
Outer Conductor Material and Plating Beryllium Copper, Gold
Body Material and Plating Brass, Tri-Metal Brass, Nickel
Coupling Nut Material and Plating Brass, Nickel
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.
Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Slide-On BMA Jack 2 Hole Flange to TNC Male Cable Using PE-SR402FLJ Coax PE3C4916
-
