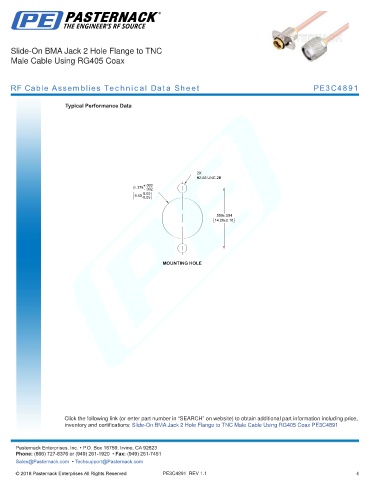

Slide-On BMA Jack 2 Hole Flange to TNC
Male Cable Using RG405 Coax

RF Cable Assemblies Technical Data Sheet PE3C4891

Typical Performance Data

2X
#2-56 UNC-2B
.378 +.000
-.002
0.00
9.60 -0.05
.243
.242
.559±.004 6.17
14.20±0.10 6.15

MOUNTING HOLE
MOUNTING HOLE

.320 +.001
-.000
8.13 +0.03
0.00

MOUNTING HOLE

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Slide-On BMA Jack 2 Hole Flange to TNC Male Cable Using RG405 Coax PE3C4891
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

A A
PE3C4891 REV 1.1 4
.500±.003
12.70±0.07

.450 +.001
-.000
11.43 +0.03
0.00

+.002
.341 -.000 .317±.001
8.66 +0.05 8.05±0.02
0.00

PANEL DRILLING

SECTION A-A
SCALE 4 : 1
