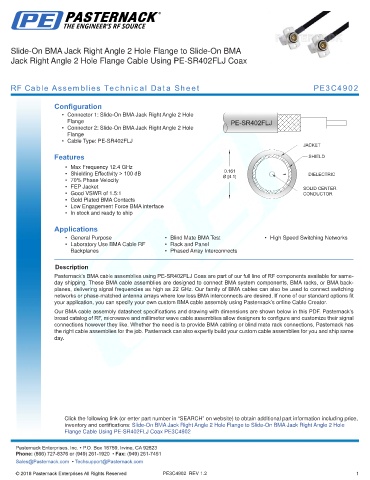

Slide-On BMA Jack Right Angle 2 Hole Flange to Slide-On BMA
     Jack Right Angle 2 Hole Flange Cable Using PE-SR402FLJ Coax




     RF Cable Assemblies Technical Data Sheet                                                            PE3C4902


                   Configuration
                      •  Connector 1: Slide-On BMA Jack Right Angle 2 Hole
                       Flange
                      •  Connector 2: Slide-On BMA Jack Right Angle 2 Hole
                       Flange
                      •  Cable Type: PE-SR402FLJ

                   Features

                       •  Max Frequency 12.4 GHz
                       •  Shielding Effectivity > 100 dB
                       •  70% Phase Velocity
                       •  FEP Jacket
                       •  Good VSWR of 1.5:1
                       •  Gold Plated BMA Contacts
                       •  Low Engagement Force BMA interface
                       •  In stock and ready to ship

                   Applications
                       •  General Purpose               •  Blind Mate BMA Test           •  High Speed Switching Networks
                       •  Laboratory Use BMA Cable RF   •  Rack and Panel
                        Backplanes                      •  Phased Array Interconnects
                   .
                    Description
                   Pasternack’s BMA cable assemblies using PE-SR402FLJ Coax are part of our full line of RF components available for same-
                   day shipping. These BMA cable assemblies are designed to connect BMA system components, BMA racks, or BMA back-
                   planes, delivering signal frequencies as high as 22 GHz. Our family of BMA cables can also be used to connect switching
                   networks or phase-matched antenna arrays where low loss BMA interconnects are desired. If none of our standard options fit
                   your application, you can specify your own custom BMA cable assembly using Pasternack’s online Cable Creator.
                   Our BMA cable assembly datasheet specifications and drawing with dimensions are shown below in this PDF. Pasternack’s
                   broad catalog of RF, microwave and millimeter wave cable assemblies allow designers to configure and customize their signal
                   connections however they like. Whether the need is to provide BMA cabling or blind mate rack connections, Pasternack has
                   the right cable assemblies for the job. Pasternack can also expertly build your custom cable assemblies for you and ship same
                   day.















                      Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
                      inventory and certifications: Slide-On BMA Jack Right Angle 2 Hole Flange to Slide-On BMA Jack Right Angle 2 Hole
                      Flange Cable Using PE-SR402FLJ Coax PE3C4902                                       Pasternack does not make  -
                any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.





                                                       PE3C4902  REV 1.2                                               1
