Slide-On BMA Plug Bulkhead to Slide-On BMA Jack
Right Angle 2 Hole Flange Cable Using PE-SR402FLJ Coax

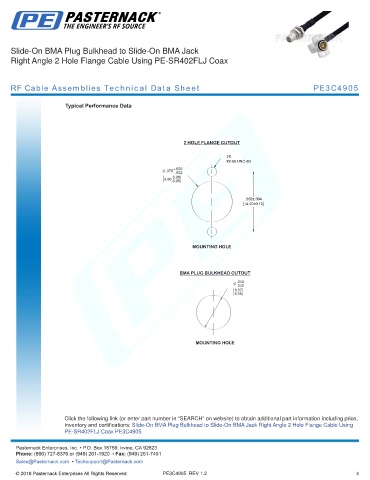

RF Cable Assemblies Technical Data Sheet PE3C4905

Typical Performance Data

2 HOLE FLANGE CUTOUT

2X
#2-56 UNC-2B
+.000
.378 -.002
9.60 0.00
-0.05

.559±.004
14.20±0.10

MOUNTING HOLE

BMA PLUG BULKHEAD CUTOUT
.243
.242 +.001
6.17 .320 -.000
6.15 +0.03
8.13 0.00

MOUNTING HOLE
MOUNTING HOLE

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Slide-On BMA Plug Bulkhead to Slide-On BMA Jack Right Angle 2 Hole Flange Cable Using
.243
.242
PE-SR402FLJ Coax PE3C4905 Pasternack does not make -
6.17
6.15
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
A A
PE3C4905 REV 1.2 4
.500±.003
12.70±0.07
MOUNTING HOLE
.450 +.001
-.000
11.43 +0.03
0.00

+.002
.341 -.000 .317±.001
8.66 +0.05 8.05±0.02
0.00

PANEL DRILLING

SECTION A-A
SCALE 4 : 1
