Slide-On BMA Plug Bulkhead to Slide-On BMA Jack
Right Angle 2 Hole Flange Cable Using RG400 Coax

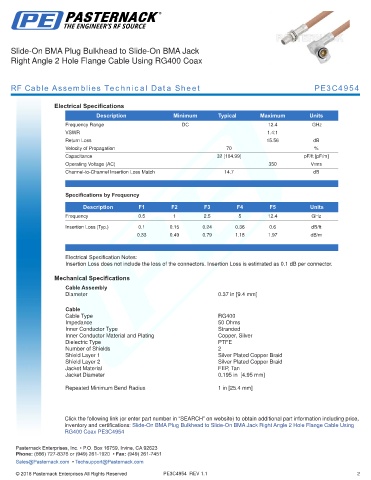

RF Cable Assemblies Technical Data Sheet PE3C4954

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 12.4 GHz
VSWR 1.4:1
Return Loss 15.56 dB
Velocity of Propagation 70 %
Capacitance 32 [104.99] pF/ft [pF/m]
Operating Voltage (AC) 350 Vrms
Channel-to-Channel Insertion Loss Match 14.7 dB
.
Specifications by Frequency

Description F1 F2 F3 F4 F5 Units
Frequency 0.5 1 2.5 5 12.4 GHz
Insertion Loss (Typ.) 0.1 0.15 0.24 0.36 0.6 dB/ft
0.33 0.49 0.79 1.18 1.97 dB/m
.
Electrical Specification Notes:
Insertion Loss does not include the loss of the connectors. Insertion Loss is estimated as 0.1 dB per connector.
Mechanical Specifications
Cable Assembly
Diameter 0.37 in [9.4 mm]
.
Cable
Cable Type RG400
Impedance 50 Ohms
Inner Conductor Type Stranded
Inner Conductor Material and Plating Copper, Silver
Dielectric Type PTFE
Number of Shields 2
Shield Layer 1 Silver Plated Copper Braid
Shield Layer 2 Silver Plated Copper Braid
Jacket Material FEP, Tan
Jacket Diameter 0.195 in [4.95 mm]
.
Repeated Minimum Bend Radius 1 in [25.4 mm]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Slide-On BMA Plug Bulkhead to Slide-On BMA Jack Right Angle 2 Hole Flange Cable Using
RG400 Coax PE3C4954 Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C4954 REV 1.1 2
