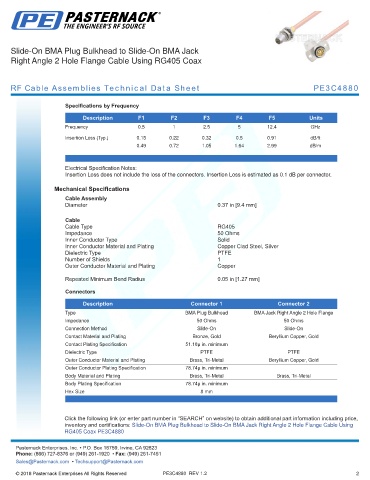

Slide-On BMA Plug Bulkhead to Slide-On BMA Jack
Right Angle 2 Hole Flange Cable Using RG405 Coax

RF Cable Assemblies Technical Data Sheet PE3C4880

Specifications by Frequency

Description F1 F2 F3 F4 F5 Units
Frequency 0.5 1 2.5 5 12.4 GHz
Insertion Loss (Typ.) 0.15 0.22 0.32 0.5 0.91 dB/ft
0.49 0.72 1.05 1.64 2.99 dB/m

.
Electrical Specification Notes:
Insertion Loss does not include the loss of the connectors. Insertion Loss is estimated as 0.1 dB per connector.

Mechanical Specifications
Cable Assembly
Diameter 0.37 in [9.4 mm]
.
Cable
Cable Type RG405
Impedance 50 Ohms
Inner Conductor Type Solid
Inner Conductor Material and Plating Copper Clad Steel, Silver
Dielectric Type PTFE
Number of Shields 1
Outer Conductor Material and Plating Copper
.
Repeated Minimum Bend Radius 0.05 in [1.27 mm]
Connectors

Description Connector 1 Connector 2
Type BMA Plug Bulkhead BMA Jack Right Angle 2 Hole Flange
Impedance 50 Ohms 50 Ohms
Connection Method Slide-On Slide-On
Contact Material and Plating Bronze, Gold Beryllium Copper, Gold
Contact Plating Specification 51.18µ in. minimum
Dielectric Type PTFE PTFE
Outer Conductor Material and Plating Brass, Tri-Metal Beryllium Copper, Gold
Outer Conductor Plating Specification 78.74µ in. minimum
Body Material and Plating Brass, Tri-Metal Brass, Tri-Metal
Body Plating Specification 78.74µ in. minimum
Hex Size 8 mm
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Slide-On BMA Plug Bulkhead to Slide-On BMA Jack Right Angle 2 Hole Flange Cable Using
RG405 Coax PE3C4880 Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C4880 REV 1.2 2
