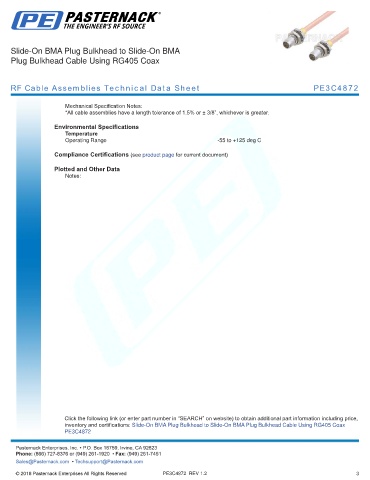

Slide-On BMA Plug Bulkhead to Slide-On BMA
Plug Bulkhead Cable Using RG405 Coax

RF Cable Assemblies Technical Data Sheet PE3C4872

Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.

Environmental Specifications
Temperature
Operating Range -55 to +125 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Slide-On BMA Plug Bulkhead to Slide-On BMA Plug Bulkhead Cable Using RG405 Coax
PE3C4872 Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C4872 REV 1.2 3
