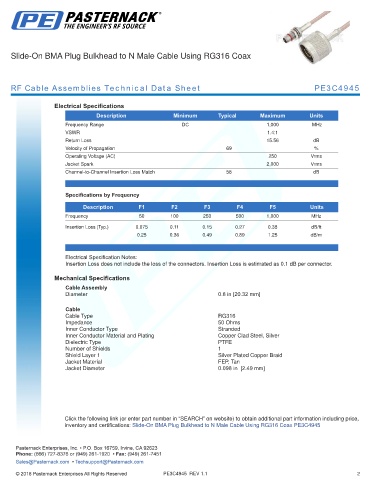

Slide-On BMA Plug Bulkhead to N Male Cable Using RG316 Coax

RF Cable Assemblies Technical Data Sheet PE3C4945

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 1,000 MHz
VSWR 1.4:1
Return Loss 15.56 dB
Velocity of Propagation 69 %
Operating Voltage (AC) 250 Vrms
Jacket Spark 2,000 Vrms
Channel-to-Channel Insertion Loss Match 58 dB
.
Specifications by Frequency

Description F1 F2 F3 F4 F5 Units
Frequency 50 100 250 500 1,000 MHz
Insertion Loss (Typ.) 0.075 0.11 0.15 0.27 0.38 dB/ft
0.25 0.36 0.49 0.89 1.25 dB/m
.
Electrical Specification Notes:
Insertion Loss does not include the loss of the connectors. Insertion Loss is estimated as 0.1 dB per connector.
Mechanical Specifications
Cable Assembly
Diameter 0.8 in [20.32 mm]
.
Cable
Cable Type RG316
Impedance 50 Ohms
Inner Conductor Type Stranded
Inner Conductor Material and Plating Copper Clad Steel, Silver
Dielectric Type PTFE
Number of Shields 1
Shield Layer 1 Silver Plated Copper Braid
Jacket Material FEP, Tan
Jacket Diameter 0.098 in [2.49 mm]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Slide-On BMA Plug Bulkhead to N Male Cable Using RG316 Coax PE3C4945
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
