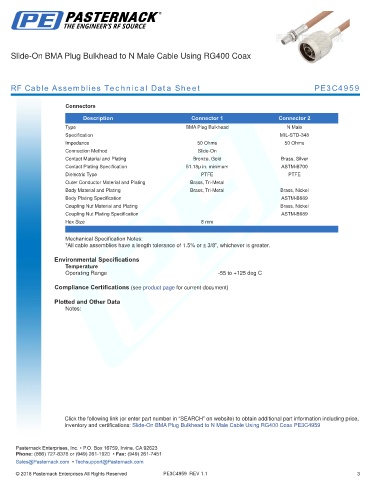

Slide-On BMA Plug Bulkhead to N Male Cable Using RG400 Coax

RF Cable Assemblies Technical Data Sheet PE3C4959

Connectors

Description Connector 1 Connector 2
Type BMA Plug Bulkhead N Male
Specification MIL-STD-348
Impedance 50 Ohms 50 Ohms
Connection Method Slide-On
Contact Material and Plating Bronze, Gold Brass, Silver
Contact Plating Specification 51.18µ in. minimum ASTM-B700
Dielectric Type PTFE PTFE
Outer Conductor Material and Plating Brass, Tri-Metal
Body Material and Plating Brass, Tri-Metal Brass, Nickel
Body Plating Specification ASTM-B689
Coupling Nut Material and Plating Brass, Nickel
Coupling Nut Plating Specification ASTM-B689
Hex Size 8 mm
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.

Environmental Specifications
Temperature
Operating Range -55 to +125 deg C

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Slide-On BMA Plug Bulkhead to N Male Cable Using RG400 Coax PE3C4959
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C4959 REV 1.1 3
