Slide-On BMA Plug Bulkhead to SMA Male
Cable Using PE-SR405FLJ Coax

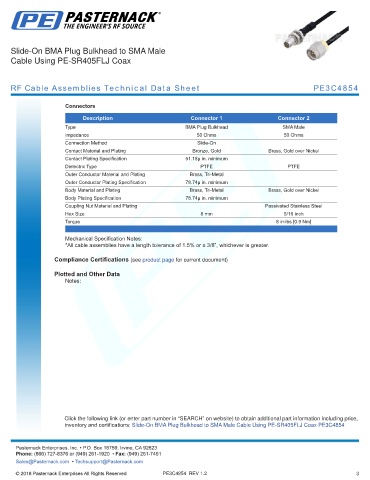

RF Cable Assemblies Technical Data Sheet PE3C4854

Connectors

Description Connector 1 Connector 2
Type BMA Plug Bulkhead SMA Male
Impedance 50 Ohms 50 Ohms
Connection Method Slide-On
Contact Material and Plating Bronze, Gold Brass, Gold over Nickel
Contact Plating Specification 51.18µ in. minimum
Dielectric Type PTFE PTFE
Outer Conductor Material and Plating Brass, Tri-Metal
Outer Conductor Plating Specification 78.74µ in. minimum
Body Material and Plating Brass, Tri-Metal Brass, Gold over Nickel
Body Plating Specification 78.74µ in. minimum
Coupling Nut Material and Plating Passivated Stainless Steel
Hex Size 8 mm 5/16 inch
Torque 8 in-lbs [0.9 Nm]
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Slide-On BMA Plug Bulkhead to SMA Male Cable Using PE-SR405FLJ Coax PE3C4854
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
