Slide-On BMA Plug Bulkhead to SMA
Male Cable Using RG400 Coax

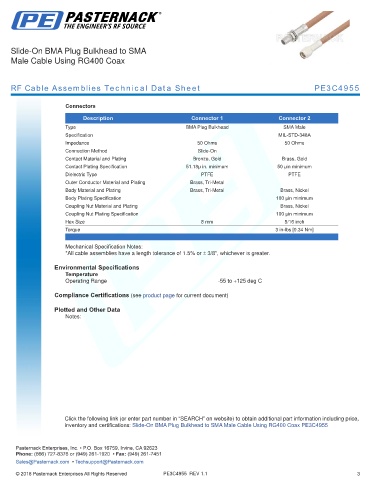

RF Cable Assemblies Technical Data Sheet PE3C4955

Connectors

Description Connector 1 Connector 2
Type BMA Plug Bulkhead SMA Male
Specification MIL-STD-348A
Impedance 50 Ohms 50 Ohms
Connection Method Slide-On
Contact Material and Plating Bronze, Gold Brass, Gold
Contact Plating Specification 51.18µ in. minimum 50 µin minimum
Dielectric Type PTFE PTFE
Outer Conductor Material and Plating Brass, Tri-Metal
Body Material and Plating Brass, Tri-Metal Brass, Nickel
Body Plating Specification 100 µin minimum
Coupling Nut Material and Plating Brass, Nickel
Coupling Nut Plating Specification 100 µin minimum
Hex Size 8 mm 5/16 inch
Torque 3 in-lbs [0.34 Nm]
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.
Environmental Specifications
Temperature
Operating Range -55 to +125 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Slide-On BMA Plug Bulkhead to SMA Male Cable Using RG400 Coax PE3C4955
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
