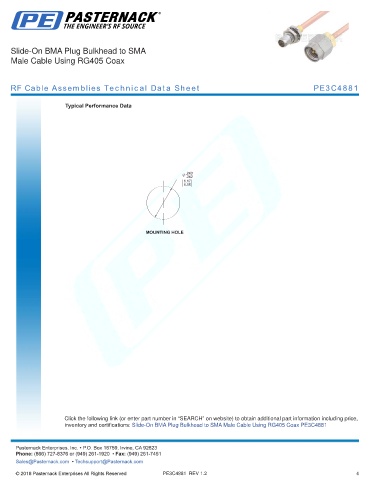

Slide-On BMA Plug Bulkhead to SMA
Male Cable Using RG405 Coax

RF Cable Assemblies Technical Data Sheet PE3C4881

Typical Performance Data
2X
#2-56 UNC-2B
.378 +.000
-.002
0.00
9.60 -0.05

.559±.004
14.20±0.10
.243
.242
6.17
6.15

MOUNTING HOLE

MOUNTING HOLE

.320 +.001
-.000
+0.03
8.13 0.00

MOUNTING HOLE

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
.500
inventory and certifications: Slide-On BMA Plug Bulkhead to SMA Male Cable Using RG405 Coax PE3C4881
12.70
.450 -
11.43 Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

.341 A A .317
8.66 8.05
PE3C4881 REV 1.2 4

PANEL DRILLING

SECTION A-A
SCALE 3 : 1
