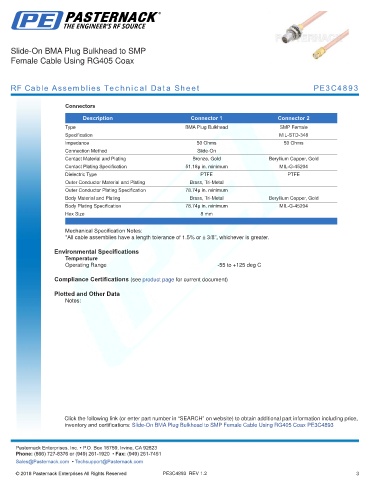

Slide-On BMA Plug Bulkhead to SMP
Female Cable Using RG405 Coax

RF Cable Assemblies Technical Data Sheet PE3C4893

Connectors

Description Connector 1 Connector 2
Type BMA Plug Bulkhead SMP Female
Specification MIL-STD-348
Impedance 50 Ohms 50 Ohms
Connection Method Slide-On
Contact Material and Plating Bronze, Gold Beryllium Copper, Gold
Contact Plating Specification 51.18µ in. minimum MIL-G-45204
Dielectric Type PTFE PTFE
Outer Conductor Material and Plating Brass, Tri-Metal
Outer Conductor Plating Specification 78.74µ in. minimum
Body Material and Plating Brass, Tri-Metal Beryllium Copper, Gold
Body Plating Specification 78.74µ in. minimum MIL-G-45204
Hex Size 8 mm
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.

Environmental Specifications
Temperature
Operating Range -55 to +125 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Slide-On BMA Plug Bulkhead to SMP Female Cable Using RG405 Coax PE3C4893
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
